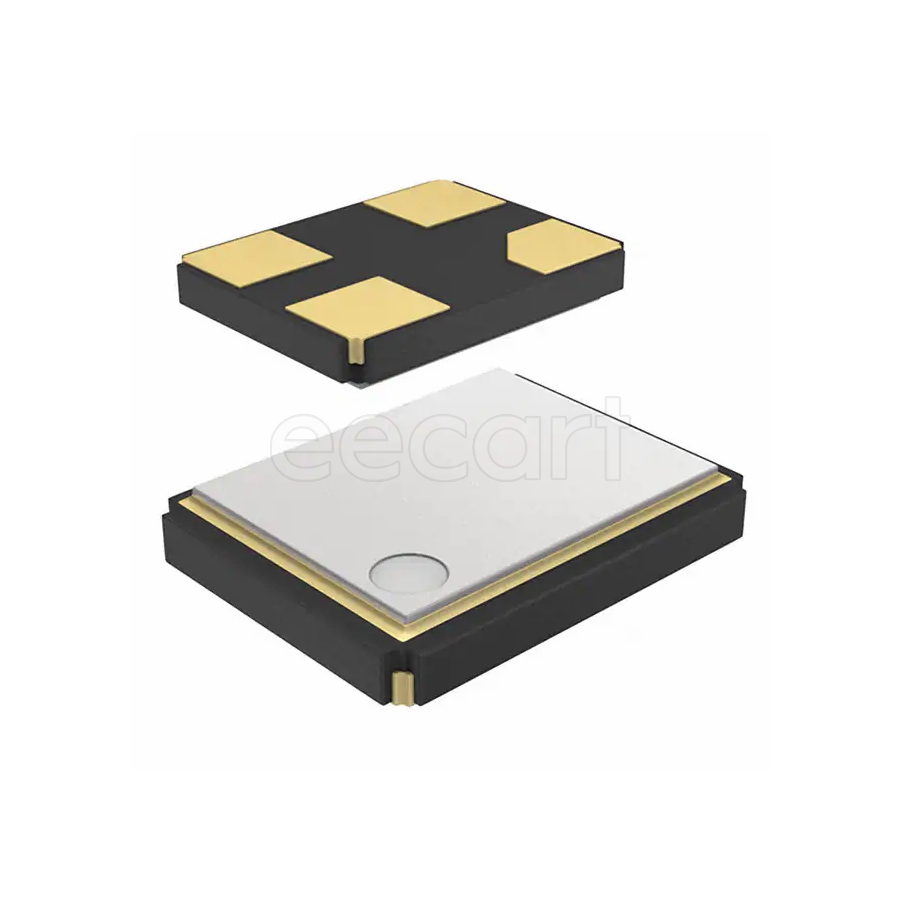

KC2520B50.0000C10E00
Manufacturer:
Kyocera AVX
Mfr.Part #:
KC2520B50.0000C10E00
Datasheet:
Description:
Oscillators SMD-4, No Lead SMD/SMT XO 50 MHz
| Parameter | Value |
|---|---|
| Length | 2.5 mm |
| Width | 2.0066 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Number of Pins | 4 |
| Height | 711.2 µm |
| Depth | 2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Frequency | 50 MHz |
| Frequency Stability | 50 ppm |
| Load Capacitance | 15 pF |
| Current Rating | 5 mA |
| Max Supply Voltage | 3.63 V |
| Min Supply Voltage | 1.6 V |
| Max Supply Current | 6 mA |
| Max Duty Cycle | 55 % |
| Type | XO |
| Output Format | CMOS |
| Base Resonator | Crystal |
| Height - Seated (Max) | 0.7 mm |
| Packaging | Reel |
| Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V |
| Supply Current | 6 mA |
